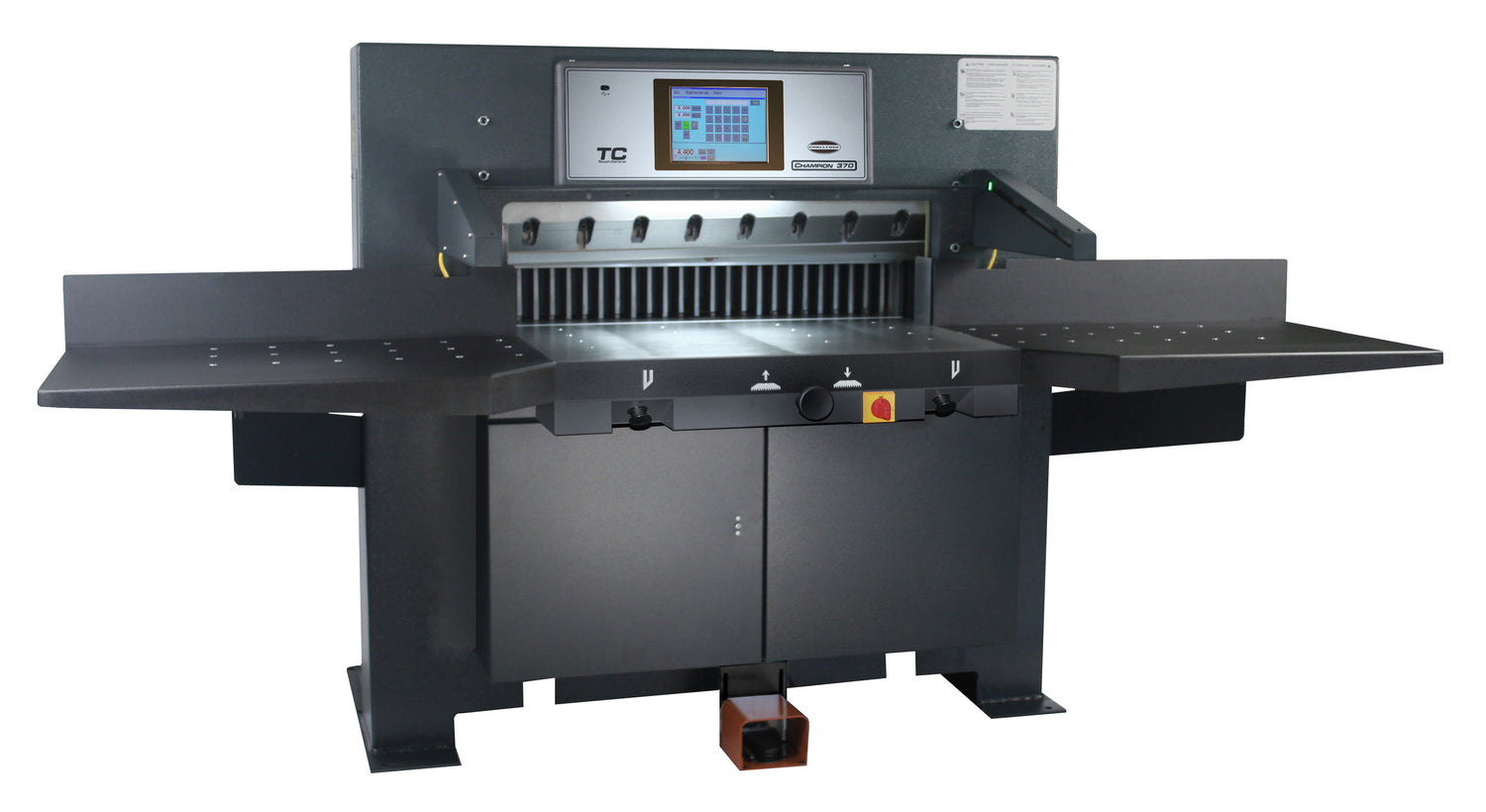

Challenge Champion 370 TC 37" Programmable Hydraulic Paper Cutter
by Challenge
The Champion 370 TC is Challenge's largest standard-format cutter, with a 37" cut width, 40" cut depth and 5-1/8" clamp opening for high-volume production. Hydraulic clamping and cutting with up to 7,000 lb of clamp force handles the heaviest lifts.
The 10.5" TC touch screen offers unlimited program storage, CSV job import by USB, auto-programming and programmable clamp pressure per cut. An air table, lighted work surface, cut-line indicator and false clamp plate come standard. UL, cUL and CE listed. Made in the USA.
Contact our team at (800) 505-9503 or sales@arigraphics.com for delivery, installation and training pricing.
Specifications
- Cutting width: 37" (94 cm); cut depth: 40" (102 cm)
- Minimum cut: 3/4" (19 mm) without false clamp plate
- Clamp opening: 5-1/8" (13 cm); max clamp force 7,000 lb
- Motor-powered programmable backgauge; 10.5" touch screen
- Footprint: 63-1/2" W (109" with side tables) x 86-1/4" L x 60" H
- Net weight: approx. 3,750 lb (1,701 kg)
- Power: 208V/38A, 230V/33A or 460V/20A, three phase, 60 Hz
