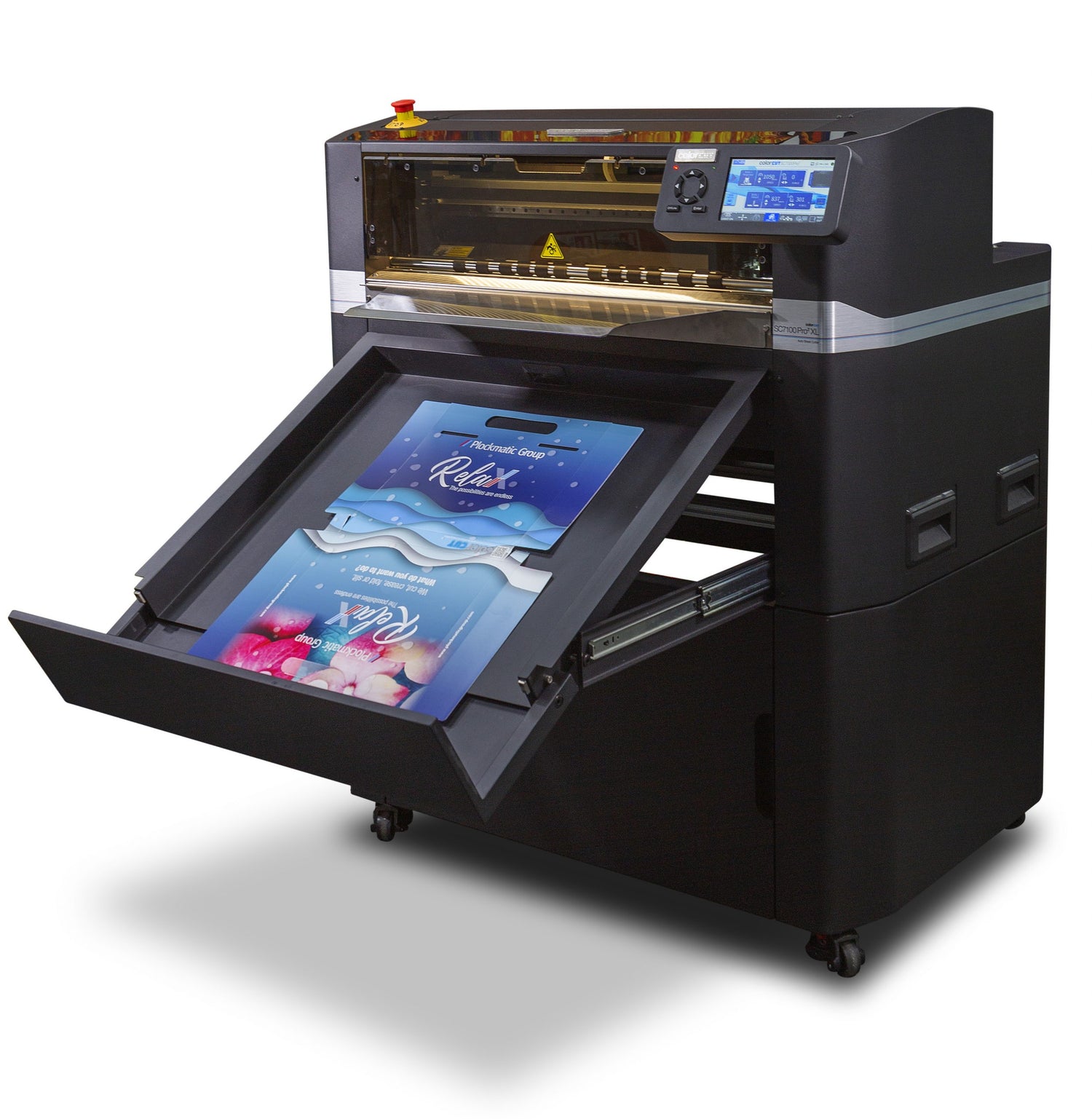

Plockmatic Morgana ColorCut SC7800 Pro-RS / Pro-RS XL Digital Die Cutter
by Plockmatic
The Morgana ColorCut SC7800 Pro-RS and Pro-RS XL are digital die cutters built for the best possible digital crease. A triple tool head with dual opposing tangential creasing wheel and groove forms a traditional male/female crease from both sides of the sheet in one pass.
Available in two sizes: the Pro-RS (up to 338 x 736mm) and the Pro-RS XL (up to 520 x 740mm). Both feed automatically and retrieve cut files by QR code for unattended runs of mixed jobs.
Key Features
- Triple tool head: 1 passive drag cut and 2 active tangential crease wheels (male and female), up to 2,500gf
- Reverse-side creasing for packaging and folding board up to 450 micron
- 9th-generation Vision3 CCD camera reads QR codes on the fly for mixed-job stacks
- Quad 'Grip and Drive' feed for cutting close to sheet edges
- SmartTags keep finished items in the sheet for tidy stacking
- DIRECT and HELD modes; 7" pivoting touch screen; ColorCut Pro 5 Production Studio included
Specifications
| Max media size | Pro-RS 338 x 736mm (13.3" x 29"); Pro-RS XL 520 x 740mm (20.5" x 29") |
| Media thickness | 200-450 micron |
| Effective cutting area | Pro-RS 330 x 686mm; Pro-RS XL 510 x 700mm |
| Crease capability | Dual opposing tangential wheel and groove, 2,500gf, reverse-side capable |
| Type of cut | Die-cut (with tags) and perf |
| Max speed | 1060mm/sec |
| Feeder capacity | 94mm stack, up to 850 sheets 80gsm |
| Weight (inc. stand) | Pro-RS 145kg (320lb); Pro-RS XL 195kg (430lb) |
| Power | 100-240V 50/60Hz, 6.3A, 140W average (320W peak) |
Pricing is available by quote. Contact our team at (800) 505-9503 or sales@arigraphics.com.
