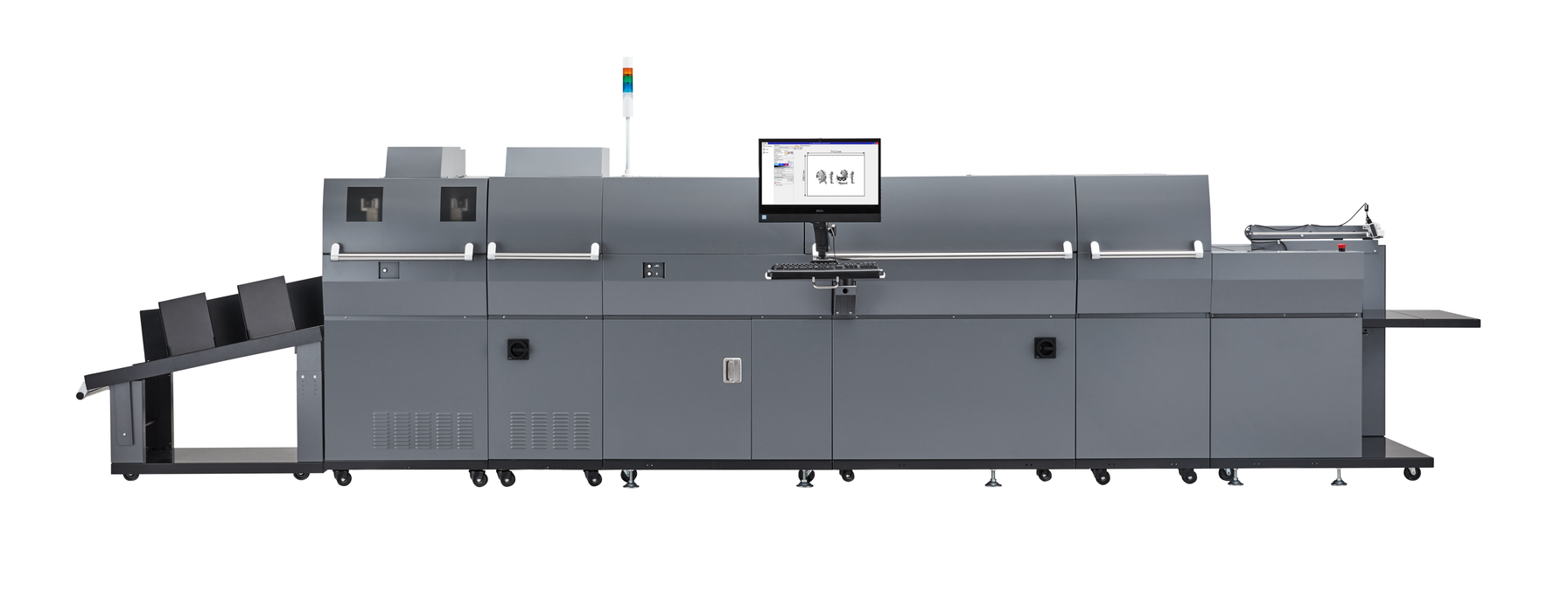

The Duplo DuSense DDC-8000 is a B2 raised spot UV coater with optional in-line cold foil, built for commercial printers running B2 presses such as the Komori J-Throne, Konica Minolta AccurioJet KM-1 and HP Indigo 15K/18K/100K/120K. It adds raised spot UV and metallic, holographic or matte foil effects with no dies, screens or lamination required.

600 x 600 dpi inkjet, UV lamp curing and camera image registration deliver precise results on demand. The optional Surface Treatment Unit adjusts the paper's surface tension so one polymer works regardless of how the sheet was printed, which helps shops running multiple presses.

Specifications

• Speed: up to 25 sheets/min spot coating, up to 12 sheets/min foiling
• Sheet size: 11″ x 11″ to 23″ x 42″
• Feeder capacity: 7.87″ (200 mm)
• Paper weight: 157–600 gsm
• Coating thickness: 10–80 microns
• Options: Cold Foil Unit, Surface Treatment Unit

Request a quote and ARI Graphics will configure the system and price delivery, installation and training for your location.
