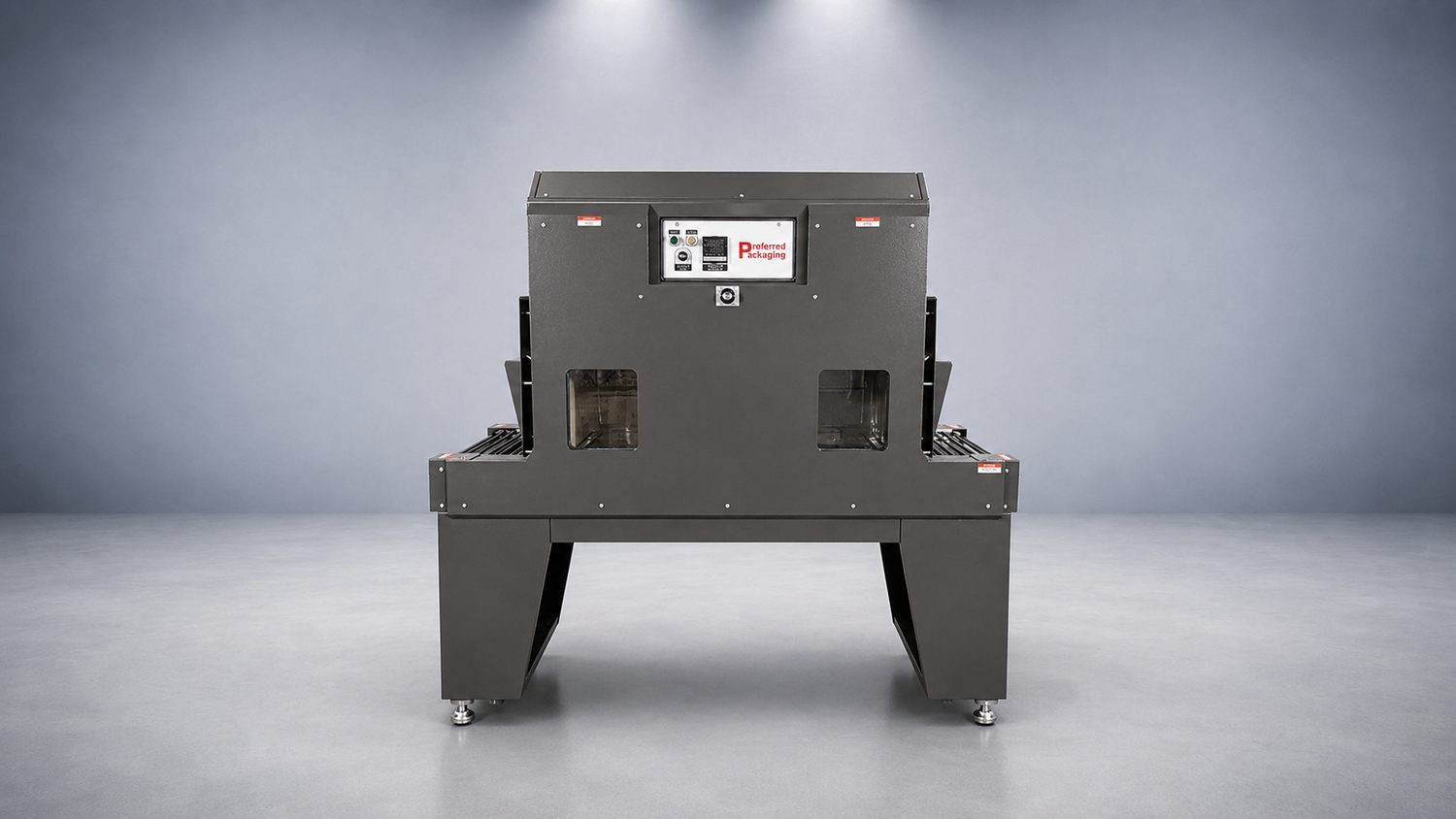

High-capacity, general-purpose shrink tunnel for shrink bands, neck bands, full-body sleeves, shrink film, and drying or curing processes.

Features

• Fully recirculating hot air chamber for uniform shrink
• Digital temperature control up to 400°F
• Adjustable air velocity
• AC variable-speed drive, 0–75 FPM conveyor
• Heavy-duty live roller rod conveyor
• Chromed, rust-resistant rollers and shafts
• Automatic cool-down with safety shutoff
• 2-year warranty

Specifications

• Tunnel opening: 48" L x 22" W x 12" H
• Conveyor speed: 0–75 FPM
• Machine dimensions: 72.5" L x 30" W x 68" H
• Weight: 630 lb net / 860 lb shipping
• Power: 220V, 3 phase, 50A

Pricing on request. Contact ARI Graphics for a quote, options and installation.
