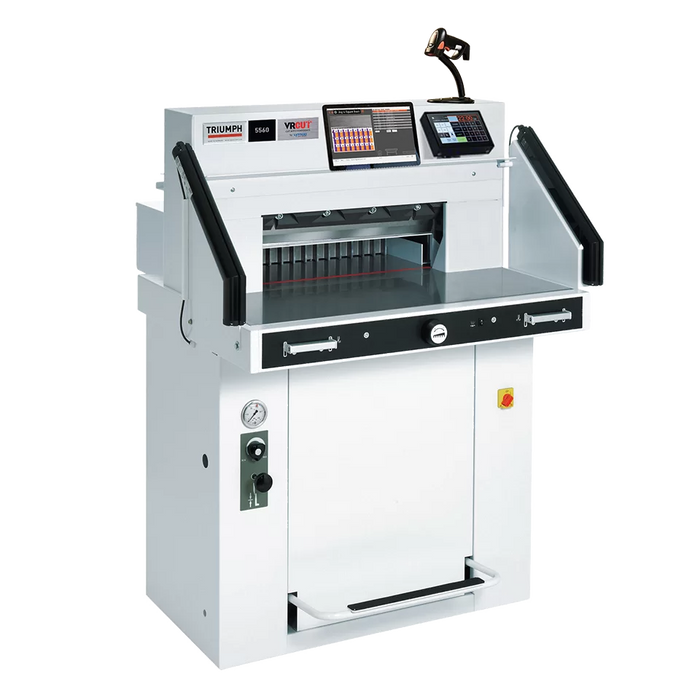

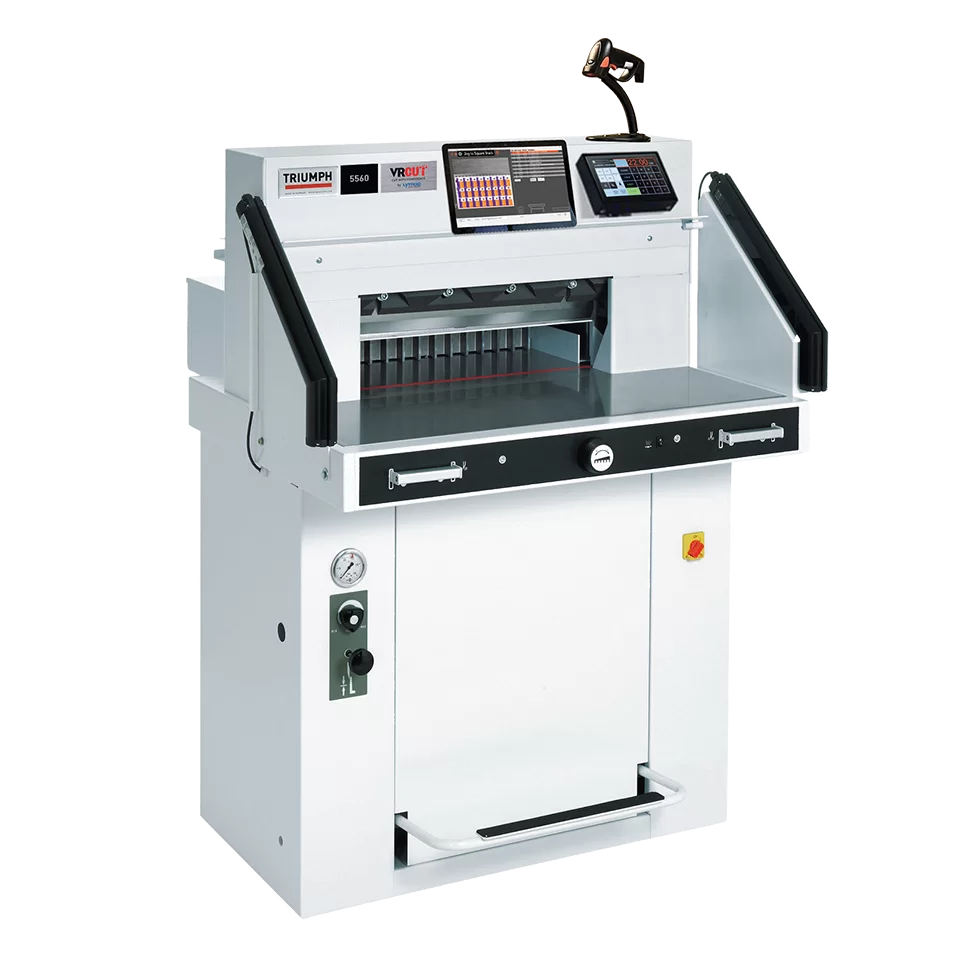

The MBM Triumph 5560 LT is a 21 5/8″ programmable hydraulic cutter with air tables (special order). It ships VRCut ready with the VRCut software and hardware kit, so cutting programs can be created from a barcode or job file and loaded automatically, cutting setup time and errors.

Specifications

• Cutting Width: 21 5/8″
• Cutting Height: 3 3/4″ (3 5/8″ with false clamp)
• Length Behind Blade: 22 7/16″
• Narrow Cut: 1 1/4″ (2 3/8″ with false clamp)
• Clamp Type: Adjustable Hydraulic
• Electrical Requirements: 115 V, 60 Hz (20 amp dedicated line required)
• Dimensions (D x W x H): 55″ x 42″ x 54″ (64 W with side tables)
• Shipping Weight: 970 lbs. (1,008 with side tables)
• Horsepower: 2

Request a quote for pricing, delivery and installation.
