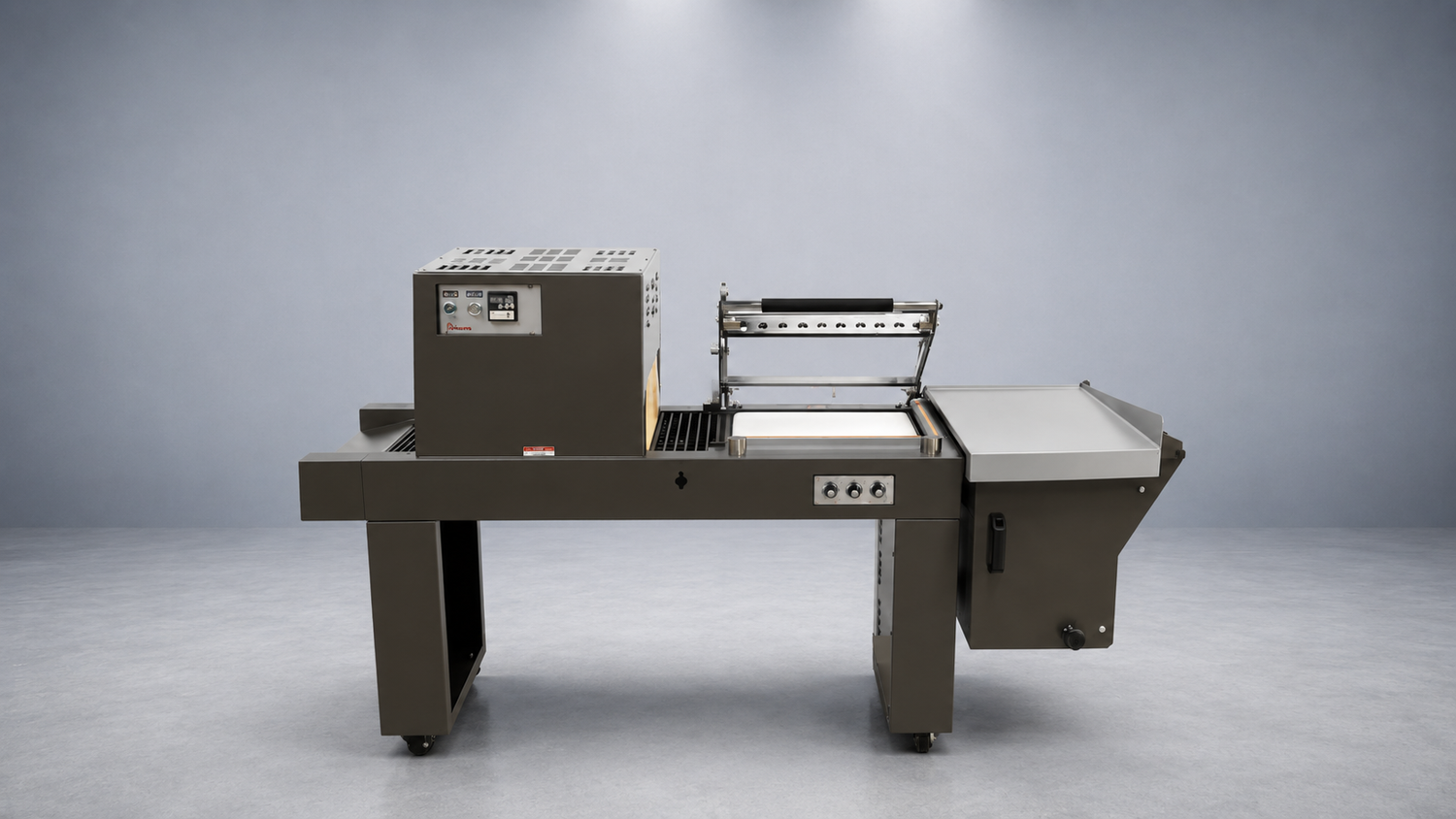

Compact, entry-level shrink packaging system that combines a micro knife L-sealer and a shrink tunnel on a single frame.

Features

• Micro knife sealing system
• Easy-load film cradle with adjustable loading tray
• Perforating pin wheel for controlled air release
• Independent seal and pulse timers
• Heavy-duty stainless steel film clamps
• Anti-jam tunnel safety system
• Digital tunnel temperature control
• Fully recirculating heated air chamber with 2,200 W heating system
• Variable-speed AC conveyor with automatic cool-down and shutoff

Specifications

• Production speed: 8–12 packages per minute
• Seal area: 15" W x 19" L
• Tunnel opening height: 6"
• Max film width: 22"
• Electrical: 110V, 20A, single phase

Pricing on request. Contact ARI Graphics for a quote, options and installation.
