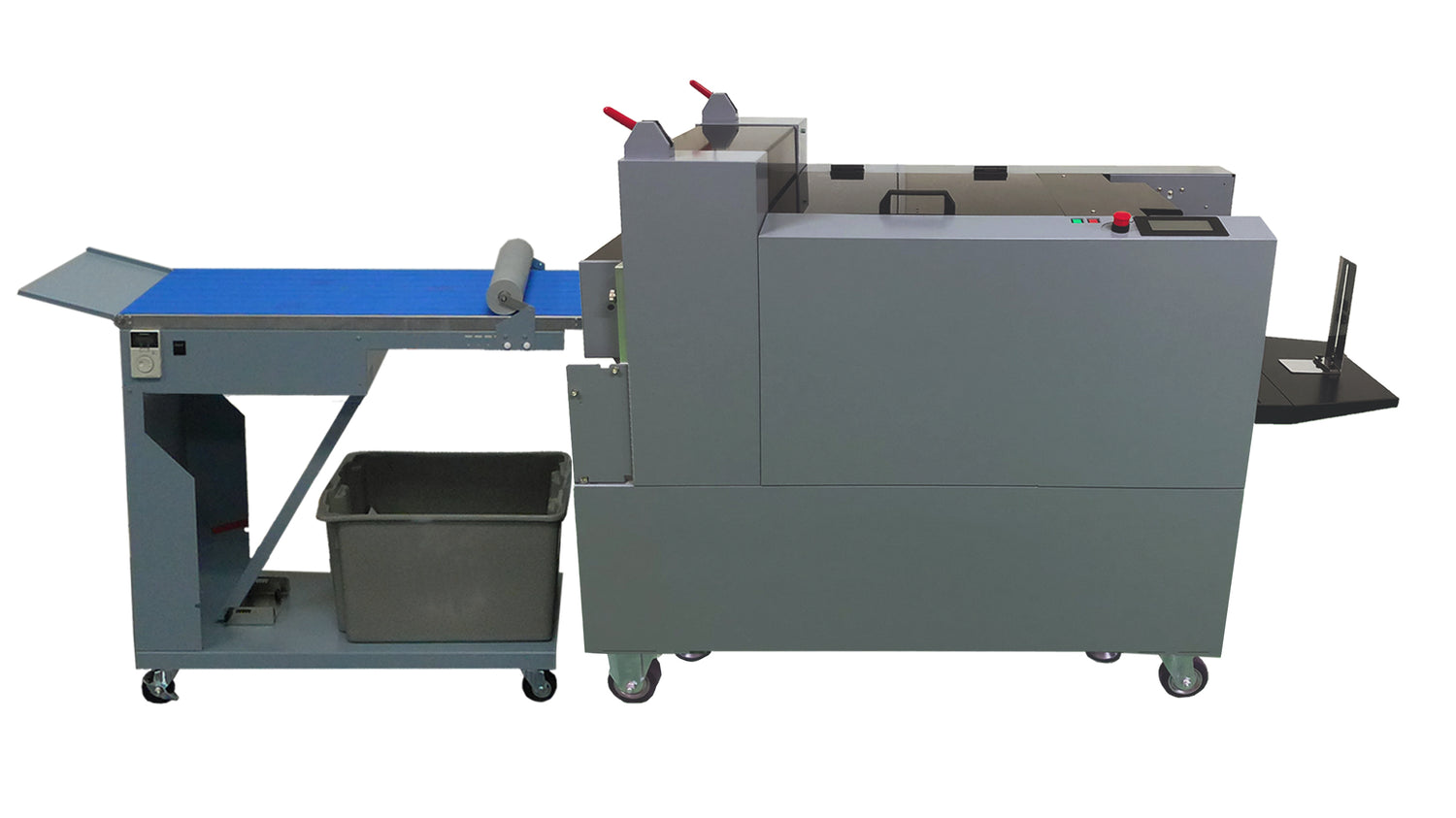

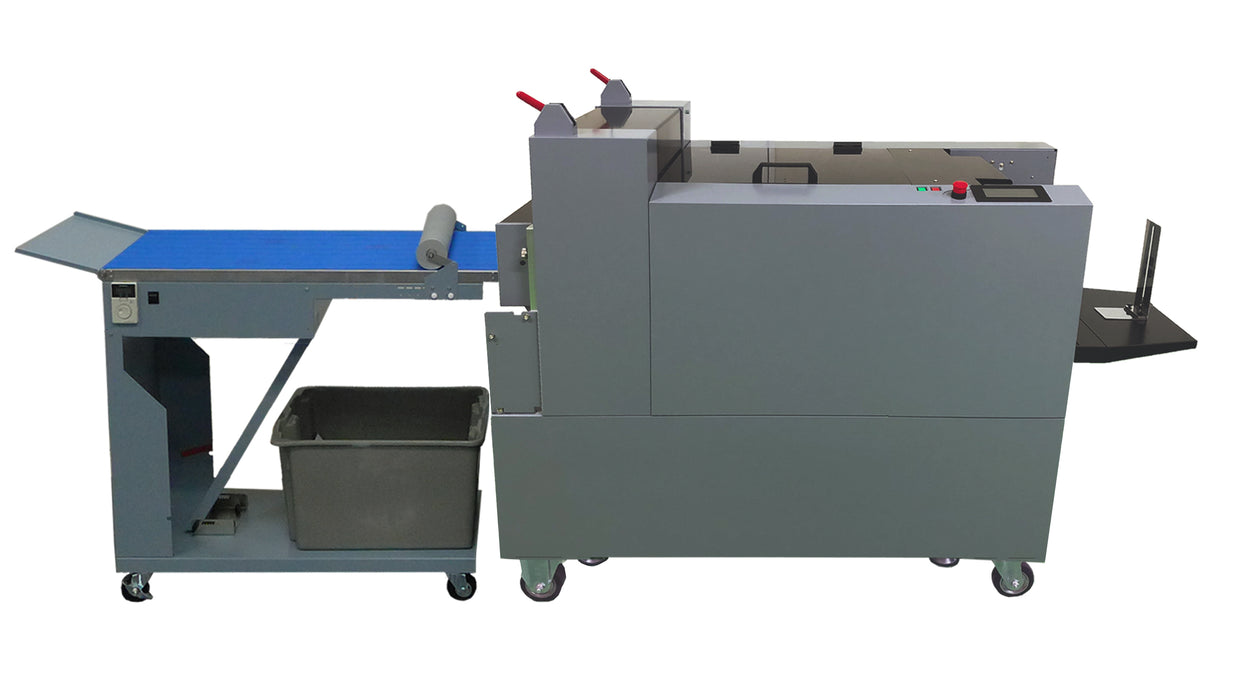

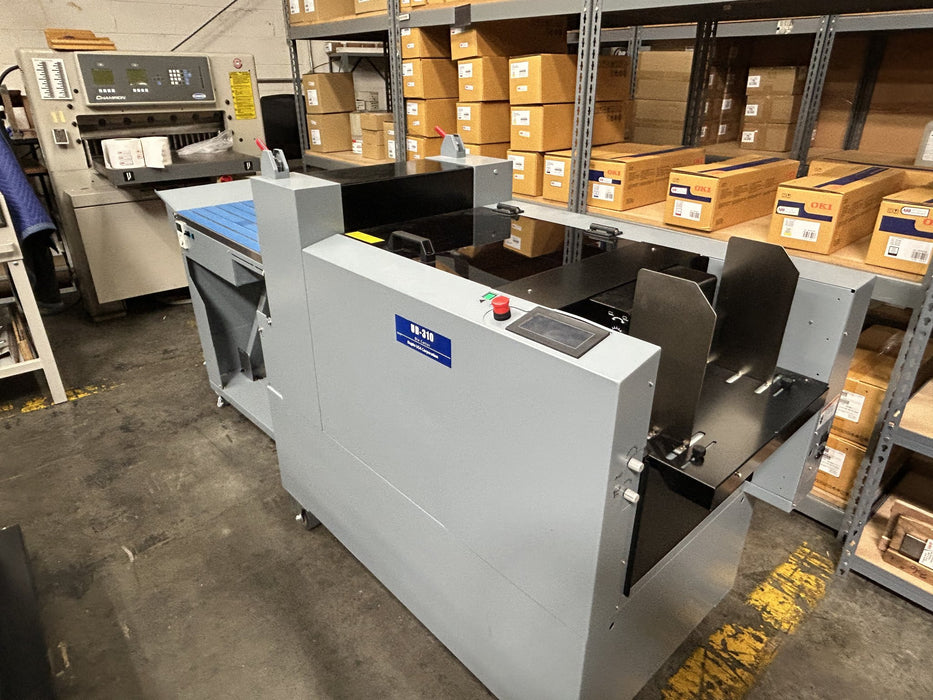

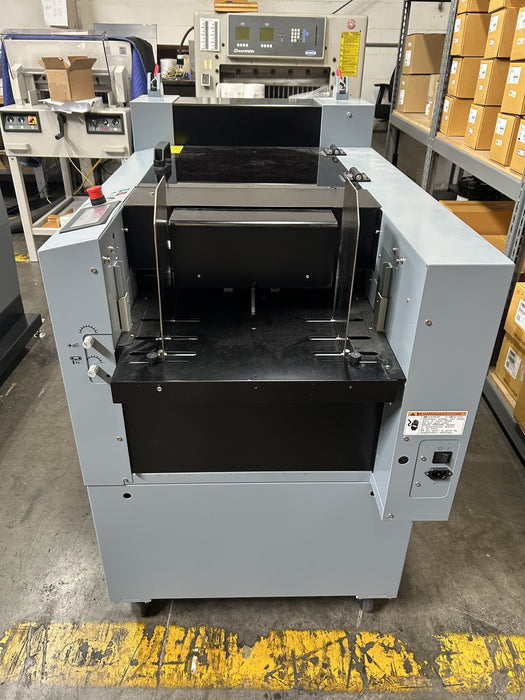

USED Duplo UD-310 Rotary Die Cutter with Long Conveyor and Skeleton Extraction

by Duplo
Sale Sale
Original price $95,000.00
Original price $95,000.00 - Original price $95,000.00
Original price $95,000.00
Current price $65,000.00
$65,000.00 - $65,000.00
Current price $65,000.00

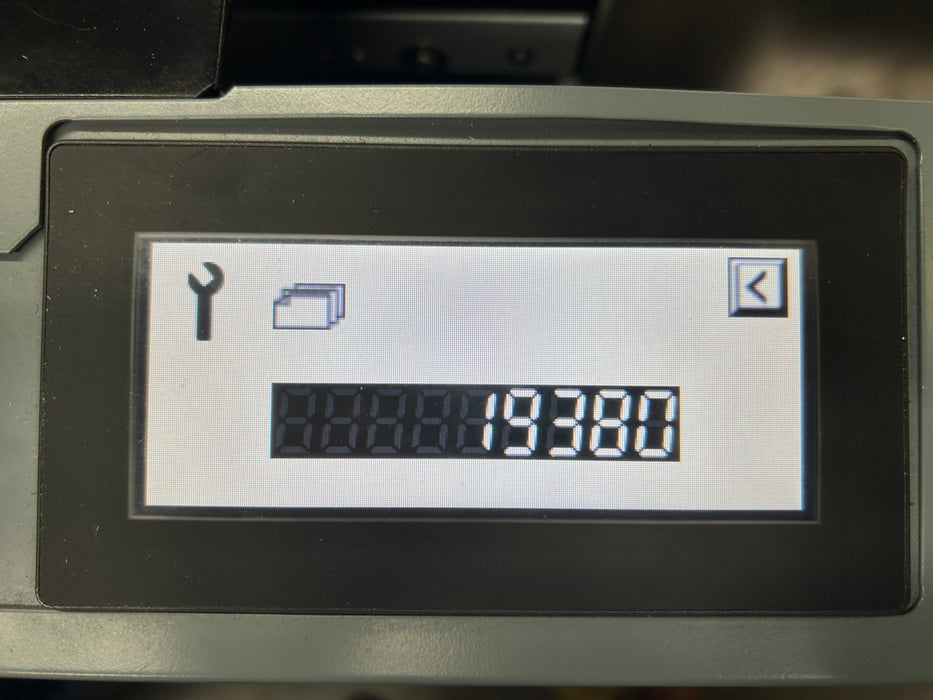

Talk about a rare find! This Duplo UD-310 Rotary Die Cutter has only run 19,380 impressions since new, and cosmetically it is almost indistinguishable from a new unit.

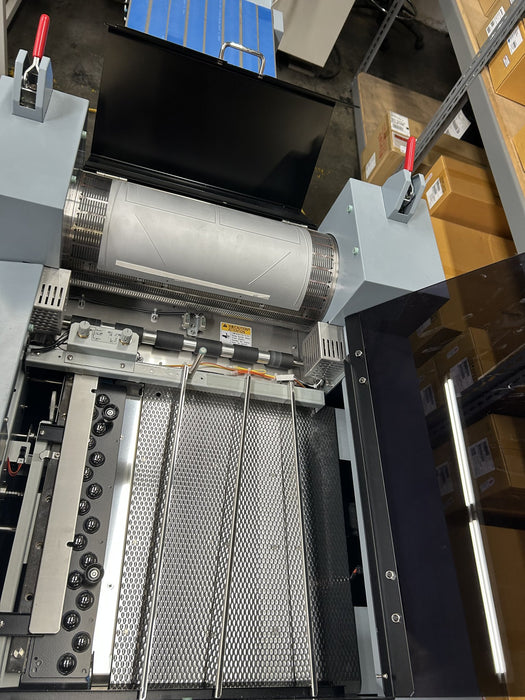

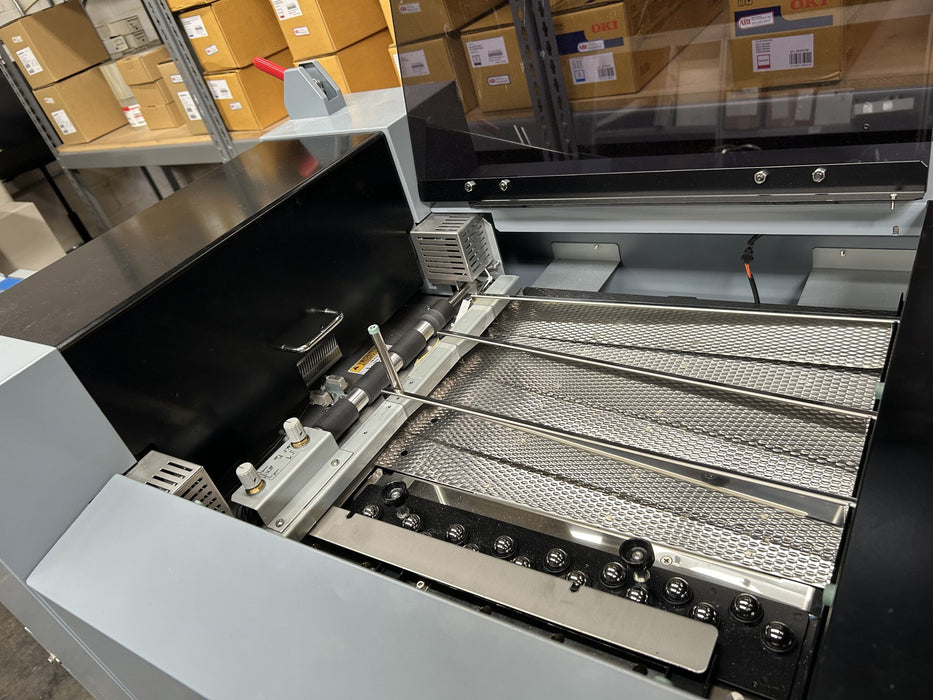

The UD-310 uses a magnetic cylinder and interchangeable flexible dies to die cut, kiss cut, perforate and crease paper, laminates, adhesives and synthetic stocks. It feeds up to 4,000 sheets per hour from an 8.7" high-capacity air suction feeder with an ultrasonic double feed sensor, and job setup is done through the touchscreen panel. This unit includes the long conveyor stacker and the skeleton extraction (separation) station, which automatically removes the waste skeleton so only finished pieces land on the conveyor. This is a currently produced and supported Duplo system with a new price of approximately $95,000.

This system includes a 90 day warranty. Contact our team at (800) 505-9503 or sales@arigraphics.com regarding delivery or shipping and installation, or to see the machine in person or via video.

Specifications
  • Speed: up to 4,000 sheets per hour (3-step speed adjustment: 4,000 / 2,700 / 1,350 sheets/hr)
  • Paper size: 8.267" x 11.693" min. to 15.35" x 20.47" max.
  • Paper weight: 106 gsm (28 lb. bond) to 400 gsm (130 lb. cover); 200 gsm minimum with separator
  • Feeder: air suction, top belt feeder, up to 8.7" (220 mm) capacity
  • Tolerance: ±0.2 mm

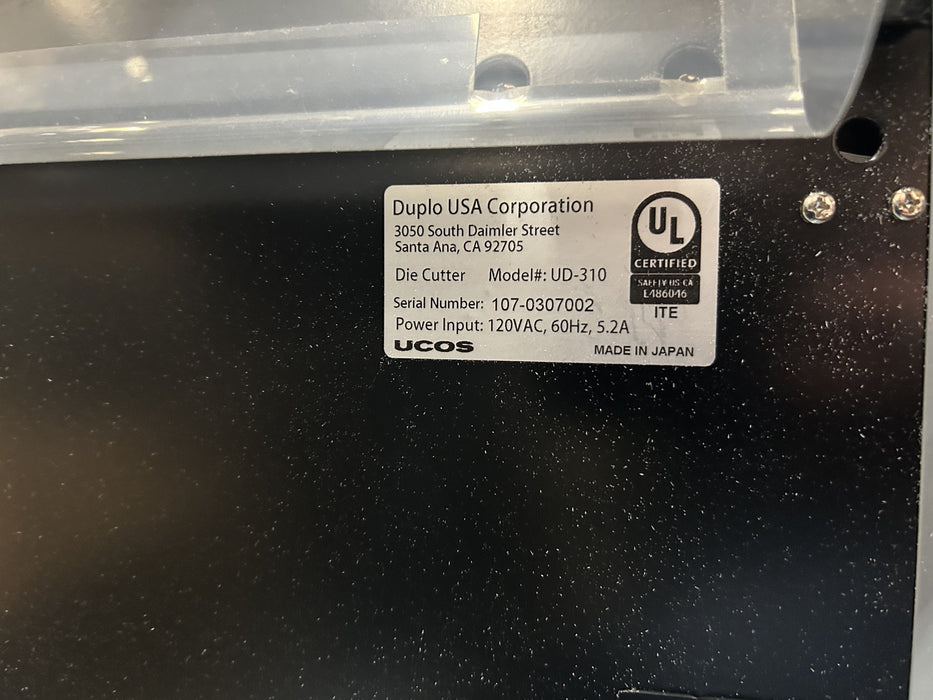

  • Power: 120VAC, 60 Hz
  • Dimensions (LxWxH): 127" x 27.17" x 46.85" with conveyor
  • Weight: 882 lb. (400 kg)
