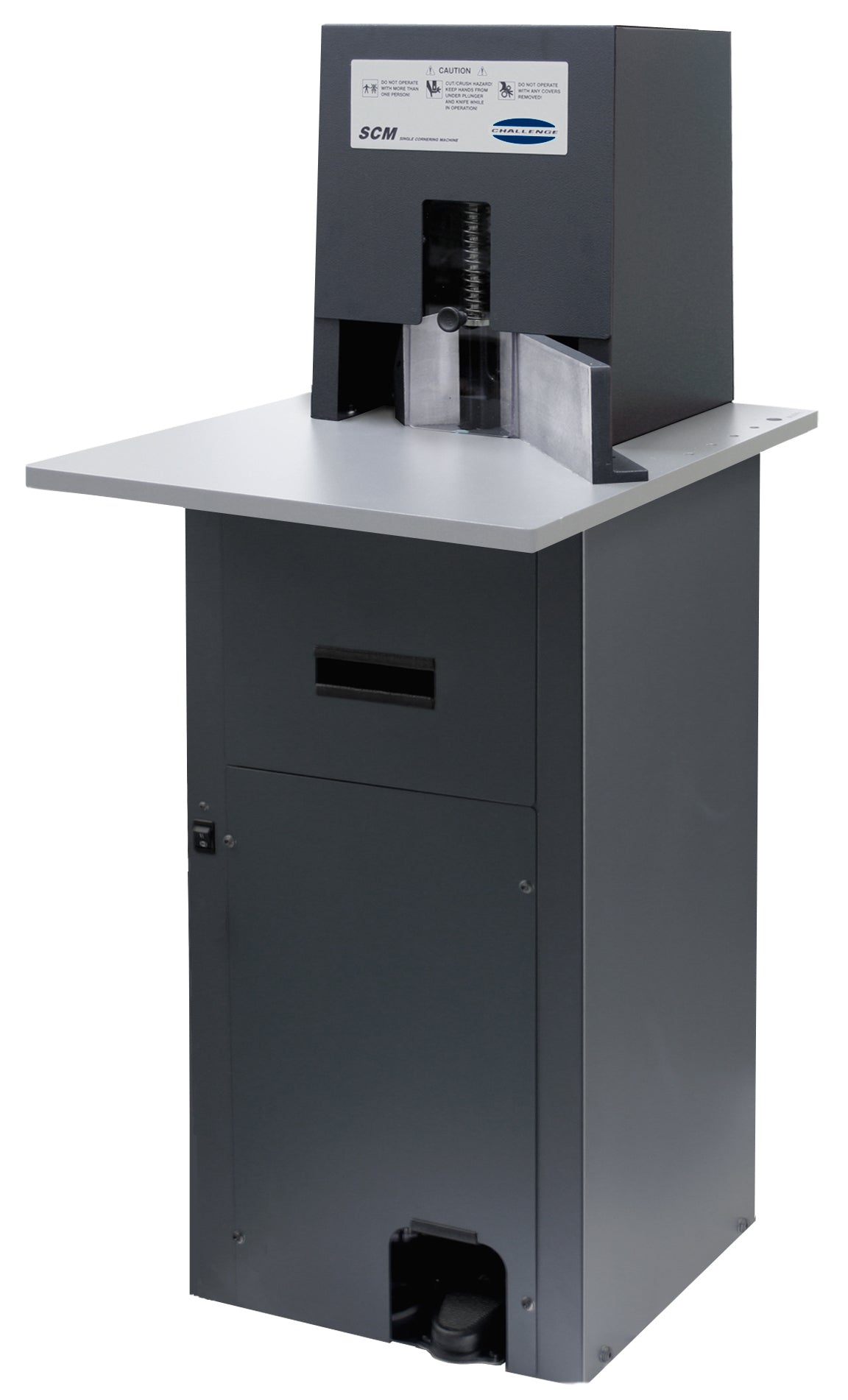

Challenge SCM Hydraulic Single Cornering Machine
by Challenge
The Challenge SCM Hydraulic rounds corners on everything from playing cards to a full ream of paper. A hydraulic pump drives a precise cut through a 4" lift, the blade returns on its own, and chips drop away by gravity. It handles any sheet size and takes six sizes of cornering blades. Made in the USA.
Contact our team at (800) 505-9503 or sales@arigraphics.com for delivery and blade sizes.
Specifications
- Lift capacity: 4" (10 cm)
- Corner radius: 1/8" to 5/8" (3 to 16 mm)
- Table: 24" deep x 20-1/4" wide, 36" high; overall height 52"
- Net weight: approx. 190 lb (86 kg)
- Power: 115V, single phase, 60 Hz, 13.5A (20A service); 1/2 HP pump
