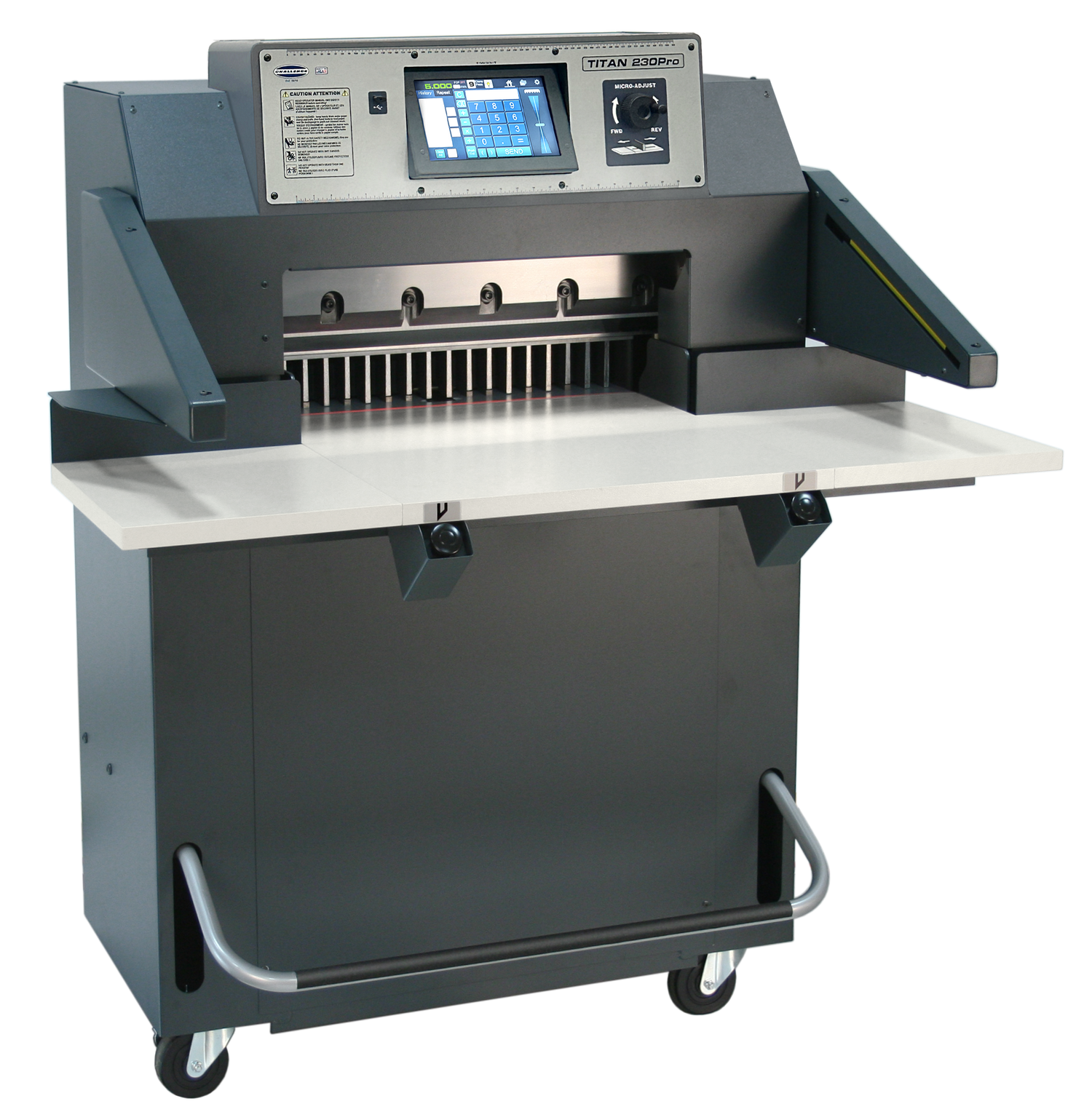

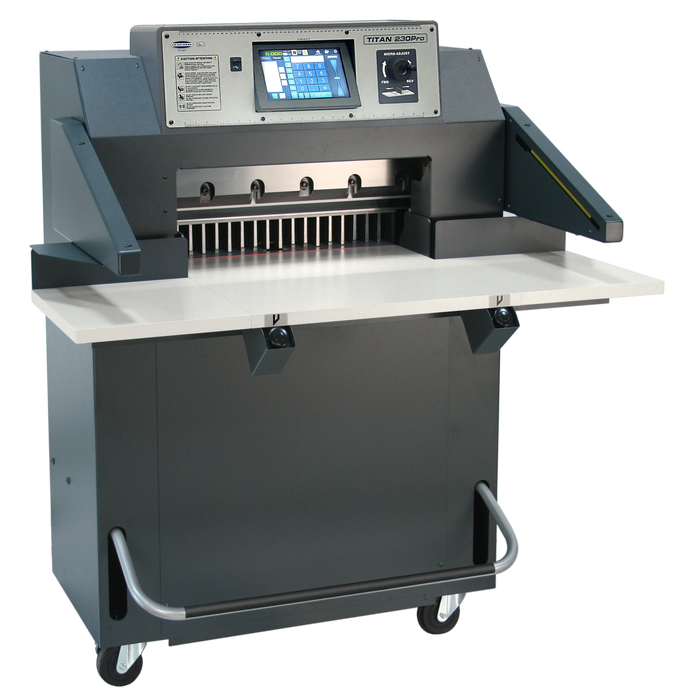

Challenge Titan 230Pro 23" Programmable Hydraulic Paper Cutter
by Challenge
The Titan 230Pro is Challenge's 23" programmable hydraulic cutter for shops that need production-grade cutting for digital, inkjet and offset work. It is built on a cast iron and steel frame with a 1" solid tool aluminum table, low-maintenance UHMW gibs and an LED cut line light.
The Pro touch-screen controller makes job programming simple, lets you set clamp pressure for each step, and stores up to 9,801 cut positions. Built-in diagnostics walk the operator through any errors. Category 4 safety light beams, an enclosed rear table, two-hand cut buttons and a knife safety latch meet UL and CE standards. Made in the USA.
Contact our team at (800) 505-9503 or sales@arigraphics.com for delivery, installation and training pricing.
Specifications
- Cutting width: 23" (58.4 cm); cut depth: 24" (61 cm)
- Minimum cut: 1/2" (13 mm) without false clamp plate
- Clamp opening: 3-1/4" (8.3 cm); hydraulic clamping with electronic pressure adjustment
- Motor-powered backgauge, programmable
- Footprint (W x L x H): 50" x 66" x 53"
- Net weight: approx. 1,000 lb (454 kg)
- Power: 208/230V, single phase, 60 Hz, 12A (NEMA 6-15R or 6-20R receptacle)
