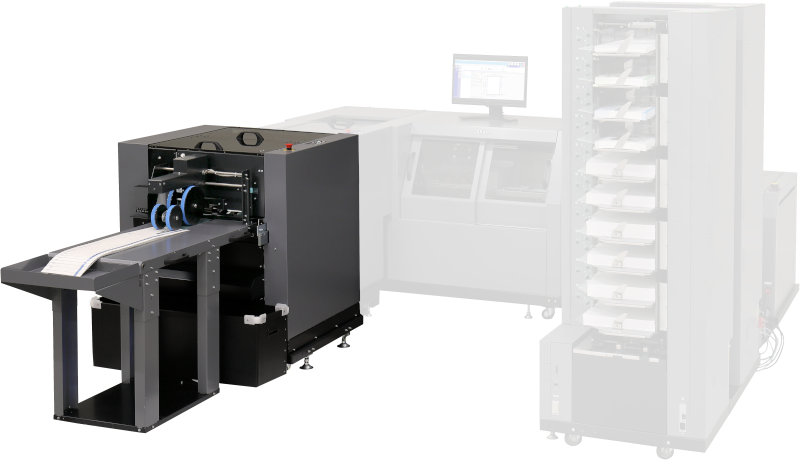

The Duplo DKTS-200 Two Knife Trimmer adds full-bleed finishing to your iSaddle 5.0 or DBM-700 bookletmaker by trimming the head and foot of each booklet in-line. Size changeovers need no tools, and setup is automated through the system's PC controller.

• Removes white borders and gutters
• Performs offset trimming
• Easy waste removal
• Options: 8 mm gutter cutter for 2-up booklets, angle blade, batch kicker, long conveyor stacker

Specifications

• Speed: up to 5,050 sets per hour
• Booklet size: 2.95″ x 4.13″ to 12.59″ x 14.33″
• Trim amount: 0.04″ to 1.18″
• Trim thickness: up to 0.23″

Request a quote and ARI Graphics will configure it with your booklet system.
