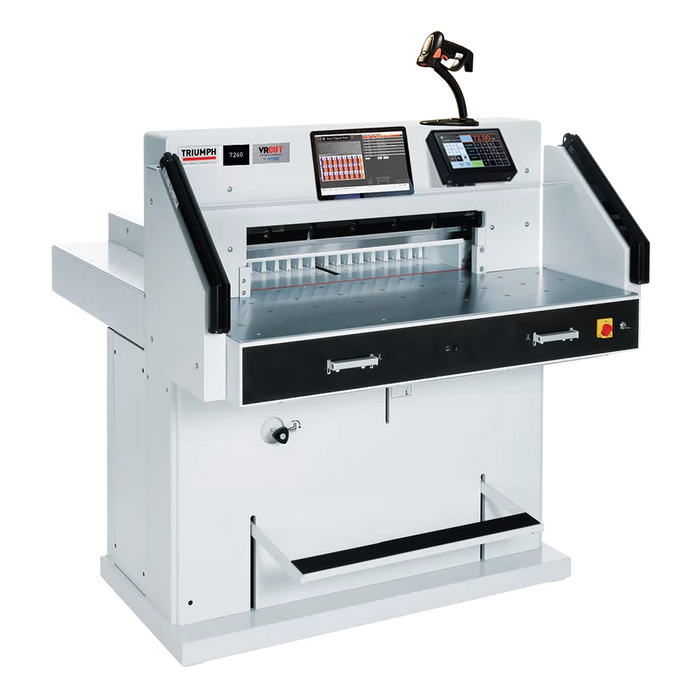

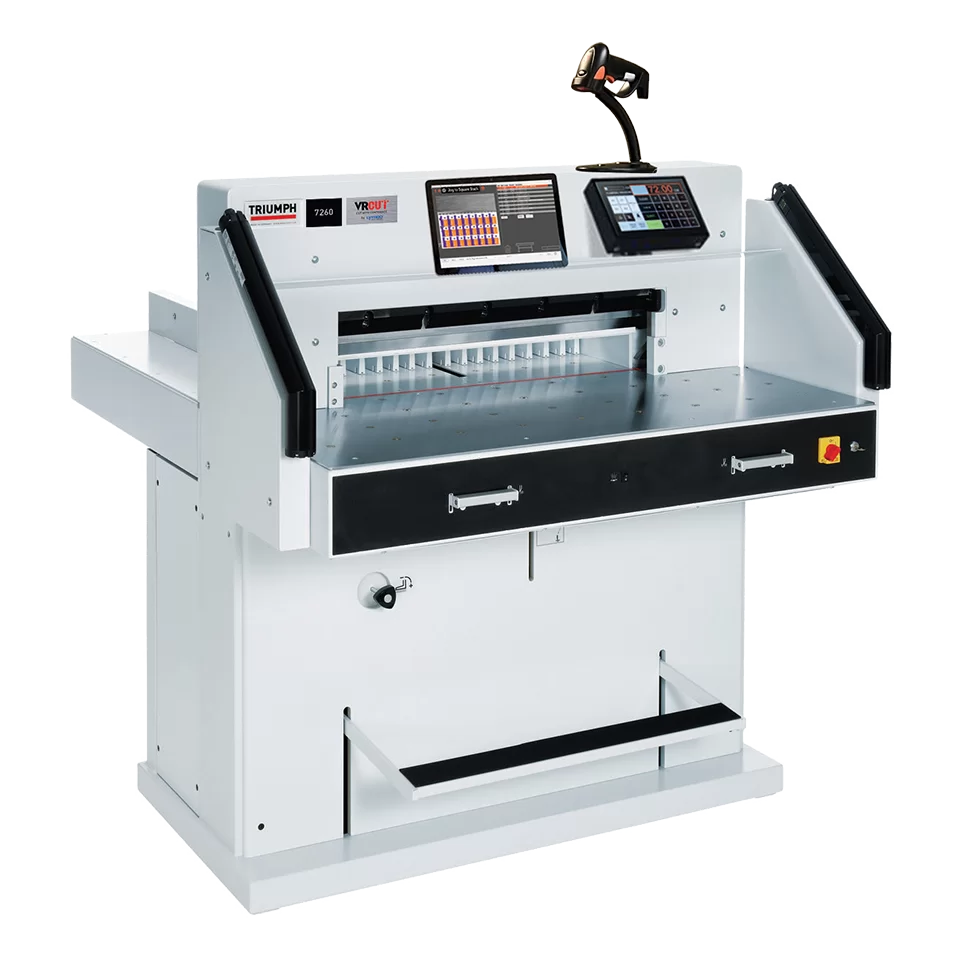

The MBM Triumph 7260 is a 28″ programmable hydraulic cutter (electrical form required). It ships VRCut ready with the VRCut software and hardware kit, so cutting programs can be created from a barcode or job file and loaded automatically, cutting setup time and errors.

Specifications

• Cutting Width: 28″
• Cutting Height: 3″ (with and without false clamp)
• Length Behind Blade: 28″
• Narrow Cut: 3/4″ (3 1/2″ with false clamp)
• Clamp Type: Adjustable Hydraulic
• Blade Material: German steel
• Horsepower: 2
• Electrical Requirements: 208/230 V. AC. 50/60 HZ, 3-Phase plug, 20-amp circuit breaker, L15-20R
• Dimensions (D x W x H): 60 1/2″ x 51 3/8″ x 52 1/2″ (63″ x 82 1/2″ with side tables)
• Shipping Weight: 1,534 lbs. (1,622 with side tables)

Request a quote for pricing, delivery and installation.
