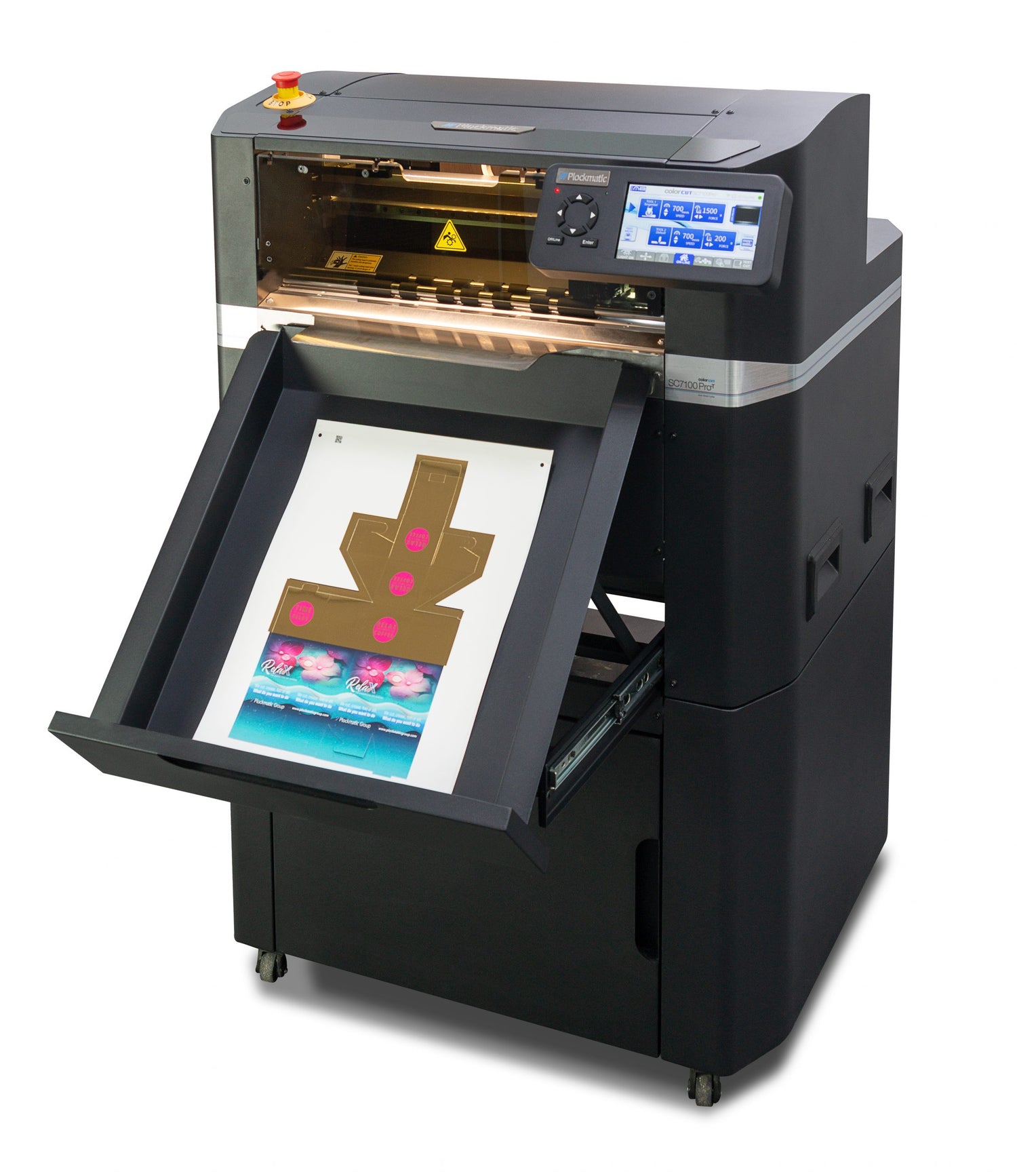

Plockmatic Morgana ColorCut SC7100 Pro-T Digital Die Cutter
by Plockmatic
The Morgana ColorCut SC7100 Pro-T is an automatic digital die cutter with tangential creasing, combining flatbed, sheet-fed, tangential and contour cutting in one compact, mobile unit.
It produces point-of-sale, packaging and kiss-cut labels in any shape from your own printed artwork. The tangential tool lifts, rotates and lowers the creasing wheel for smoother, more defined creases on board up to 450 micron.
Key Features
- Dual tool head: passive drag cut plus active tangential creasing wheel, up to 2,500gf
- Cut and crease paperboard up to 450 micron; die-cut with tags, kiss-cut and perf
- Speeds up to 1060mm/sec
- Auto feeder up to 1,000 sheets with air-blade separation and automated jog
- 9th-generation Vision3 CCD camera retrieves cut files by QR code, even for mixed stacks or rotated sheets
- DIRECT and HELD modes; HELD runs jobs from USB without a PC
- 7" pivoting touch screen with live camera preview; ColorCut Pro 5 Production Studio included
Specifications
| Crease capability | Tangential wheel, 2,500gf, max 450 micron |
| Type of cut | Die-cut (with tags), half cut (kiss-cut) and perf |
| Max speed | 1060mm/sec |
| Feeder capacity | Up to 1,000 sheets 80gsm |
| Power | 100-240V 50/60Hz, 100W average (320W peak) |
Pricing is available by quote. Contact our team at (800) 505-9503 or sales@arigraphics.com.
