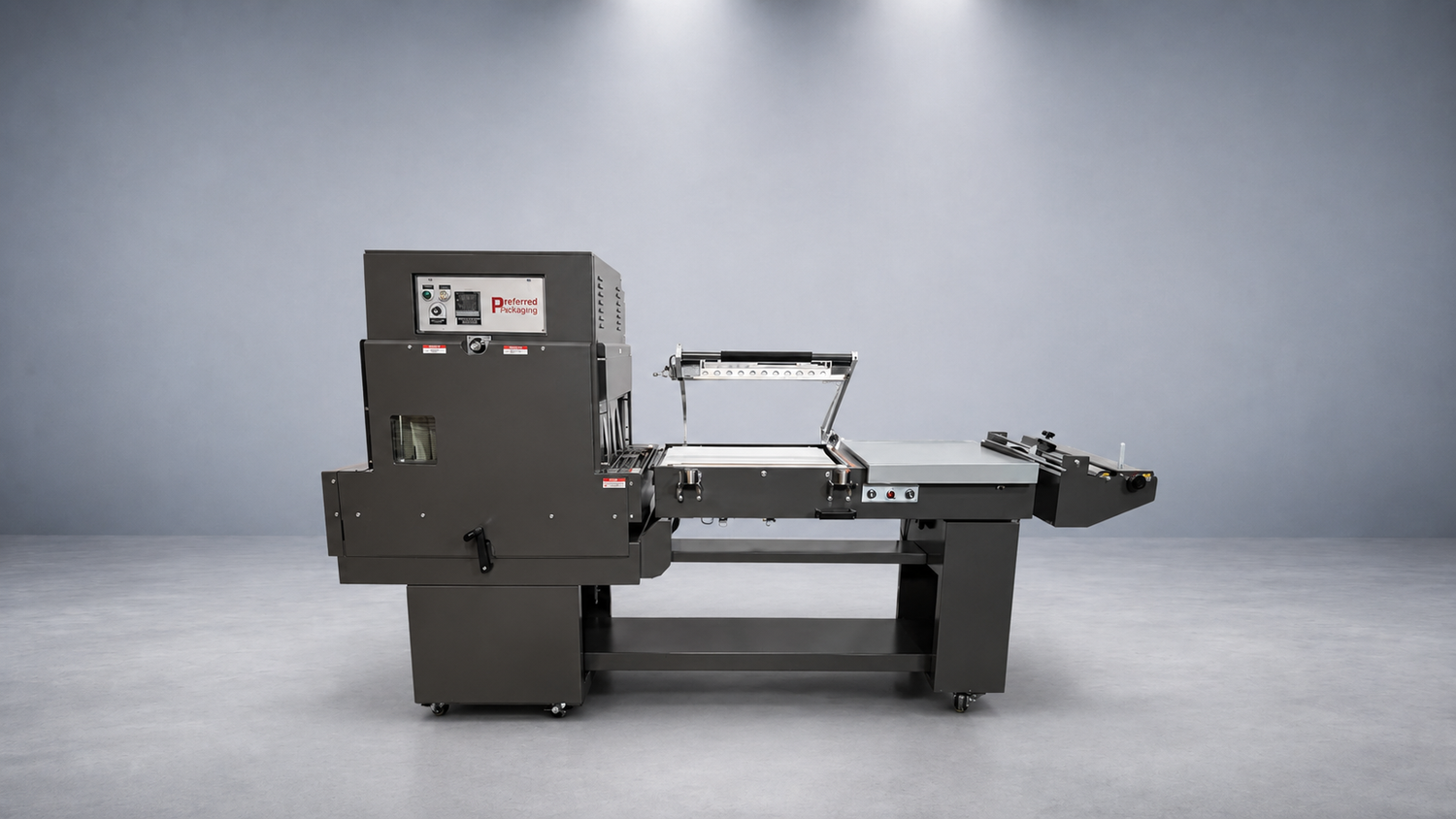

Semi-automatic micro knife L-sealer and shrink tunnel built on a single frame for smooth product flow and efficient operation from one power source.

Features

• Micro knife seal technology
• Linear bearing sealer adjustment (forward/backward)
• Power discharge conveyor
• Easy-load film cradle with brake
• Single power source
• Fully recirculating air chamber
• Live roller rod conveyor
• Digital temperature control
• Variable speed drive and air velocity control
• Fast heat-up: 300°F in under 10 minutes
• Adjustable tunnel height

Specifications

• Seal size: 16" W x 22" L
• Tunnel opening: 28" L x 18" W x 8" H
• Max film width: 20"
• Machine dimensions: 103" L x 32" W x 62" H
• Weight: 1,150 lb
• Electrical: 220V, single phase, 45A, 50/60 Hz

Pricing on request. Contact ARI Graphics for a quote, options and installation.
