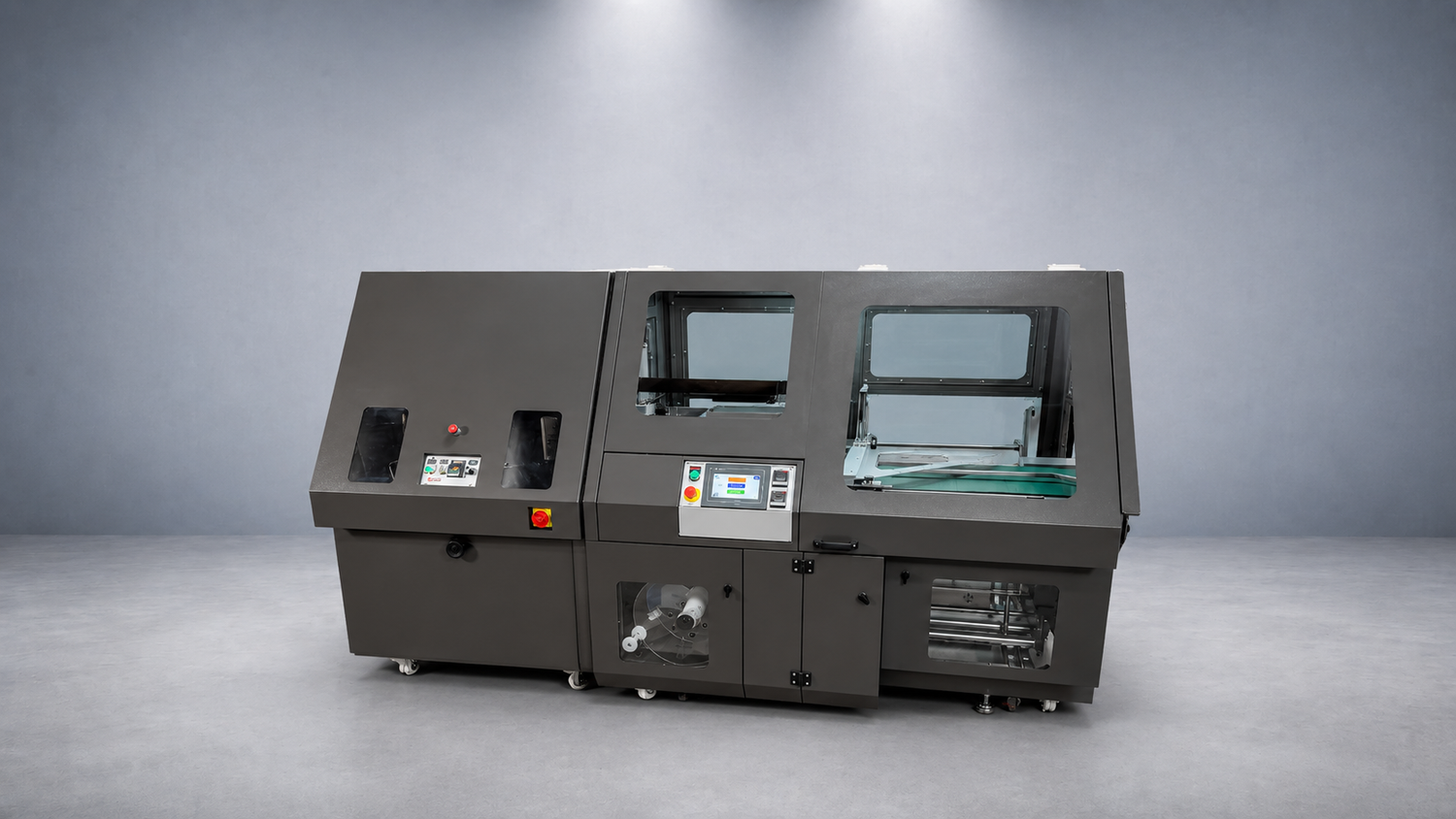

Automatic, high-speed packaging system that combines an L-sealer and shrink tunnel on one frame, with touchscreen PLC control and automatic product adjustment.

Features

• APA automatic product adjustment for fast changeovers
• Vertical seal head with single-piece hot knife blade
• 7" color touchscreen HMI with Delta PLC and 40-program memory
• Motorized seal head adjustment
• Fully recirculating shrink chamber
• Variable speed drive 0–110 FPM
• Live roller rod conveyor
• CE-approved safety system

Specifications

• Speed: up to 40 packages per minute (depending on product size)
• Seal area: 25" L x 19" W x 8" H
• Package size: min 2.5" x 2.5" x 1/8", max 25" L x 16" W x 6" H
• Max film width: 24"
• Chamber size: 18" W x 8" H x 38" L
• Heater bank: 10 kW; blower motor: 1 HP
• Digital programmable temperature control 0–400°F
• Auto-centering, side-to-side adjustable tunnel with automatic cool-down
• Power: 220V, single phase, 60A

Pricing on request. Contact ARI Graphics for a quote, options and installation.
